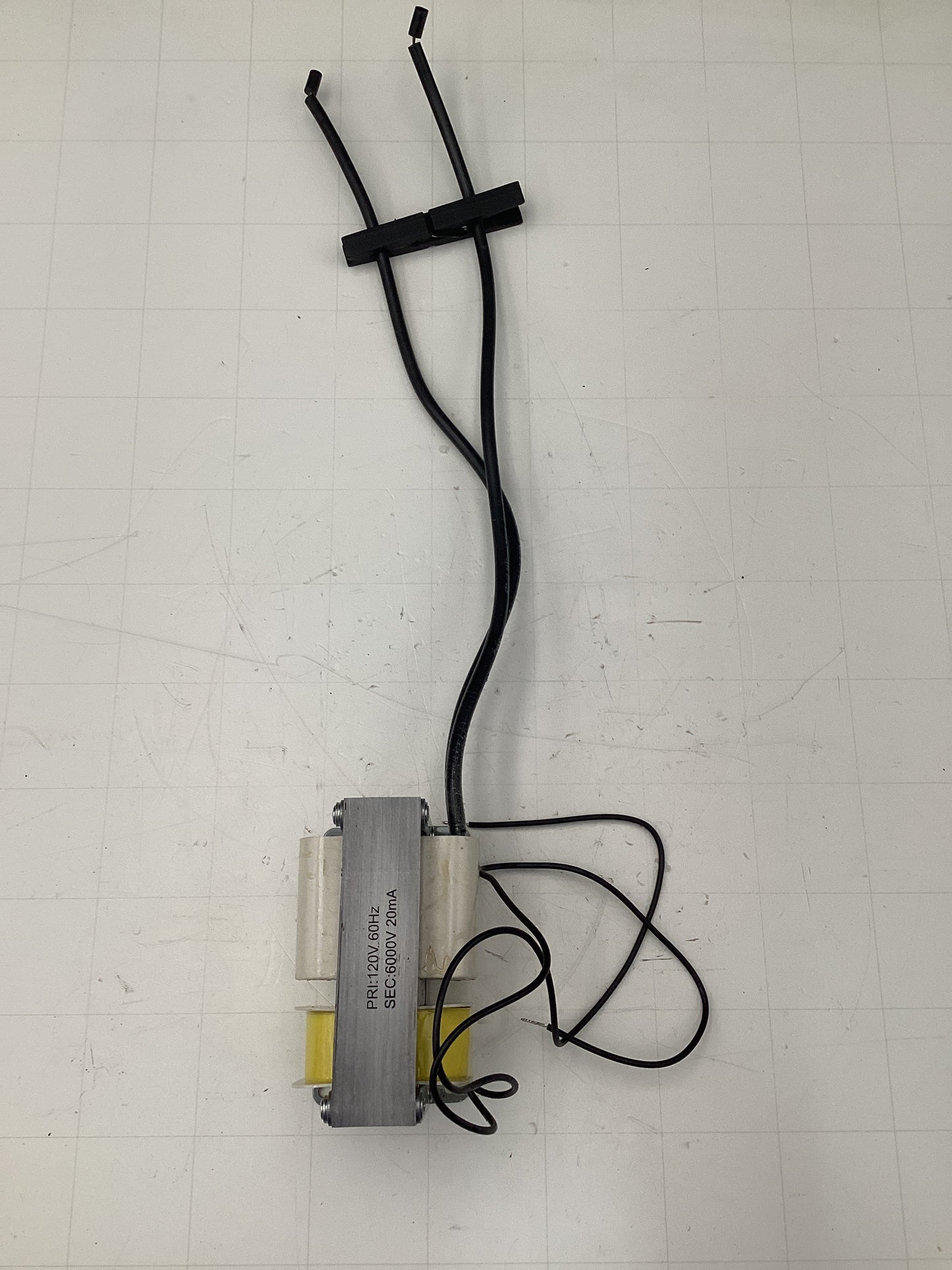

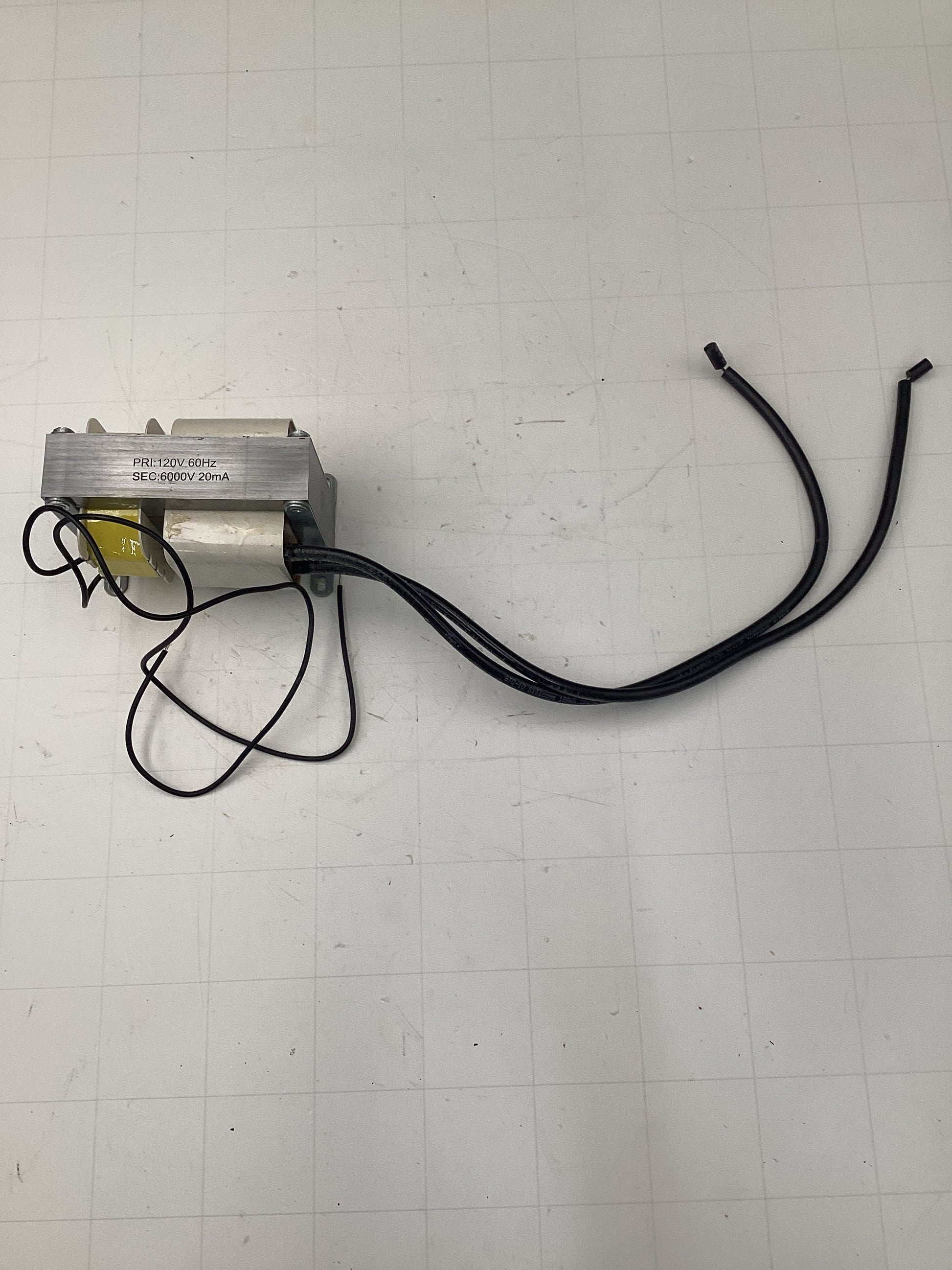

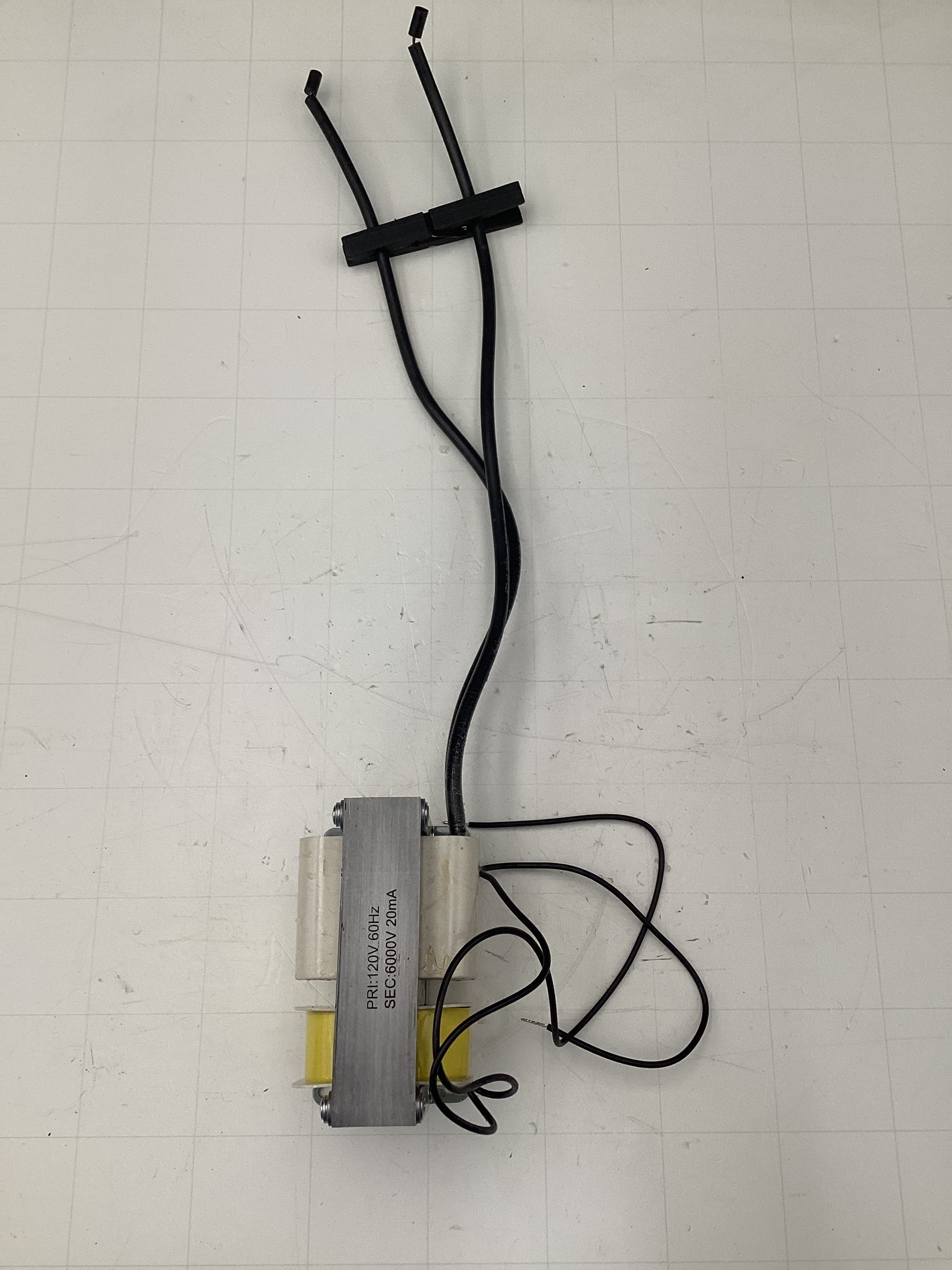

Open Core & Coil Neon Sign Transformer – 6,000V 20mA – Model CC6020

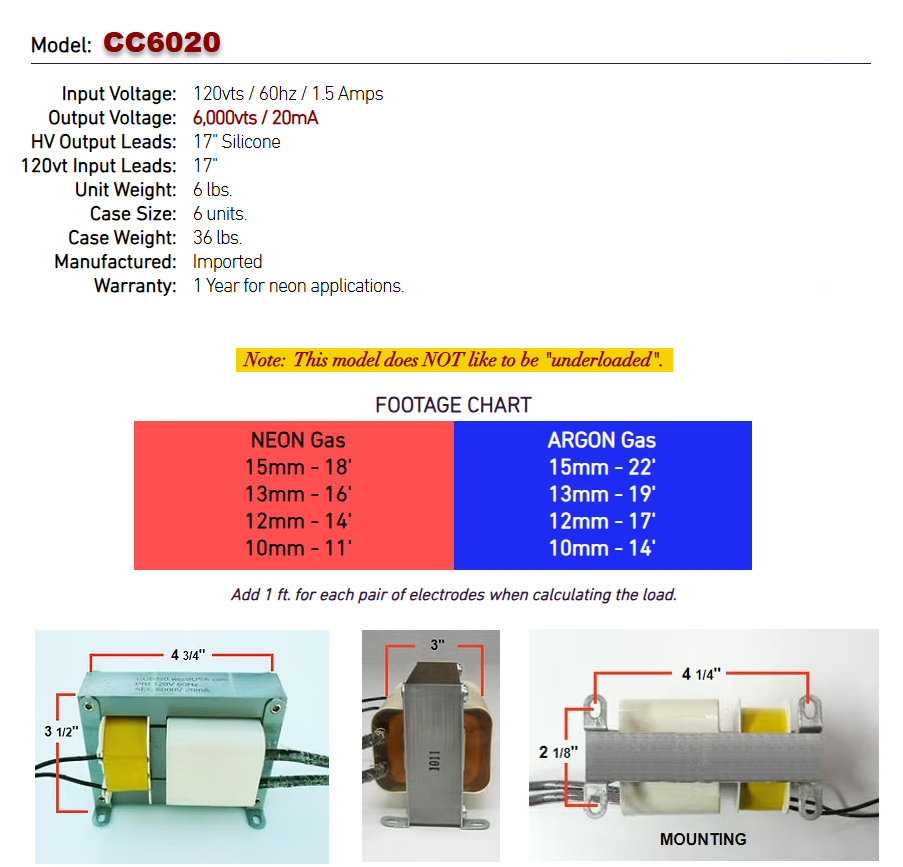

Dimensions: 4 3/4" W x 3 1/2" H x 3" D

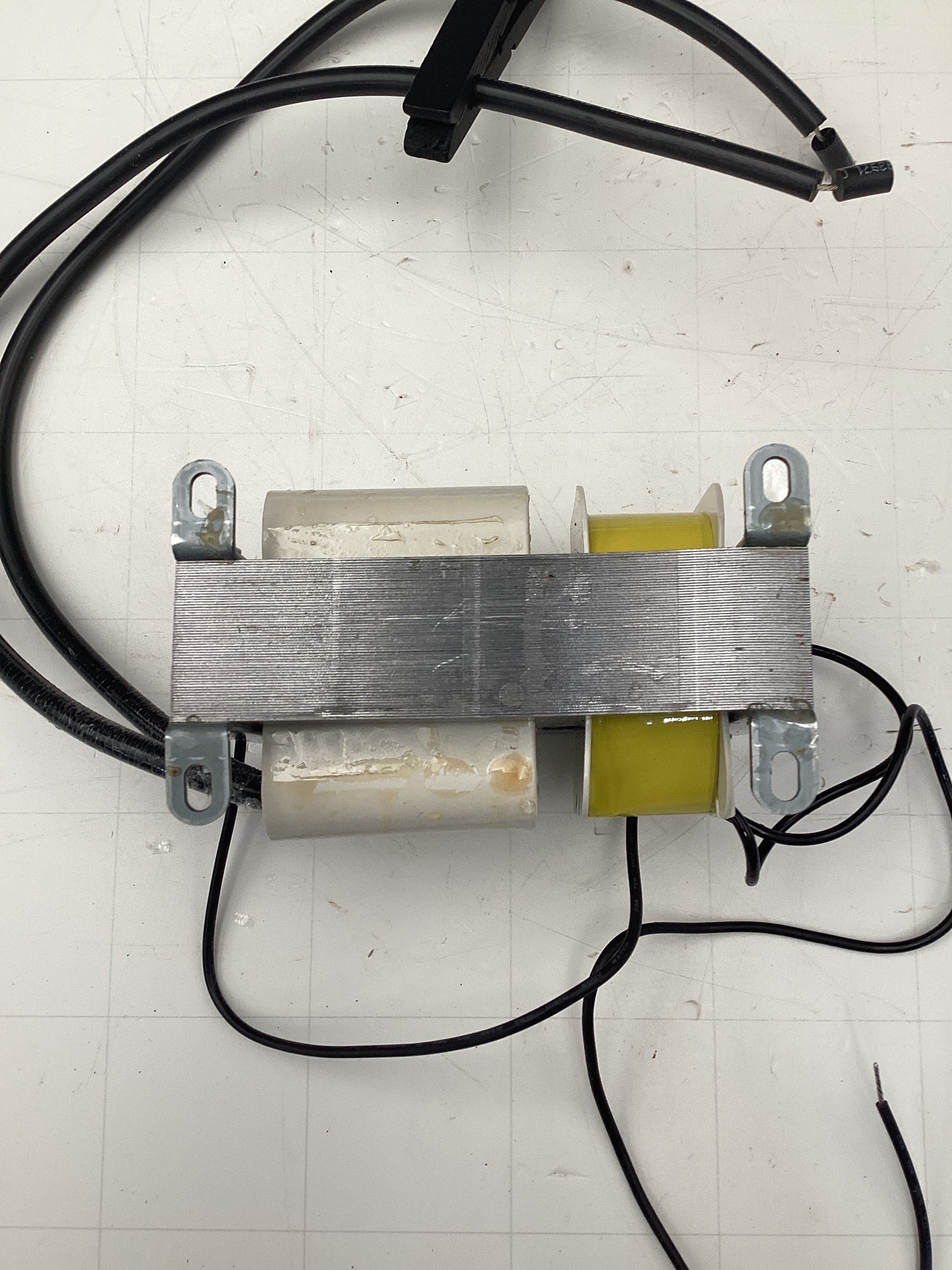

Mounting Hole Spacing (center to center): 4 1/4" x 2 1/8"

Input Voltage: 120V AC – 60Hz – 1.5 Amps
Output Voltage: 6,000V
Output Current: 20mA
Transformer Type: Open Core & Coil
HV Output Leads: 17" Silicone
120V Input Leads: 17"

⚠️ Note: This transformer must not be underloaded. Too little tube load may shorten transformer life.

*Pictures for reference only.*

**Please take the time to choose the correct replacement Power Supply(s) for your neon sign(s). If you have any questions, use the "Contact Us" link below. We provide comprehensive details for each product to help you make an informed decision. Please note that all sales are final.**
